IMA Special Parts Triple Clamps - Model 6 MOD.6 (PANIGALE 899, 959, 1199, 1299)

$ 840.00
Color
Titanium
Black
Natural Aluminum
Clamp Offset
Vendor: EDR Performance

Available: In stock

SKU: IMA-MODEL-6

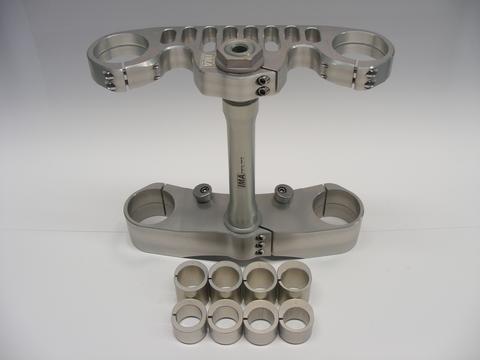

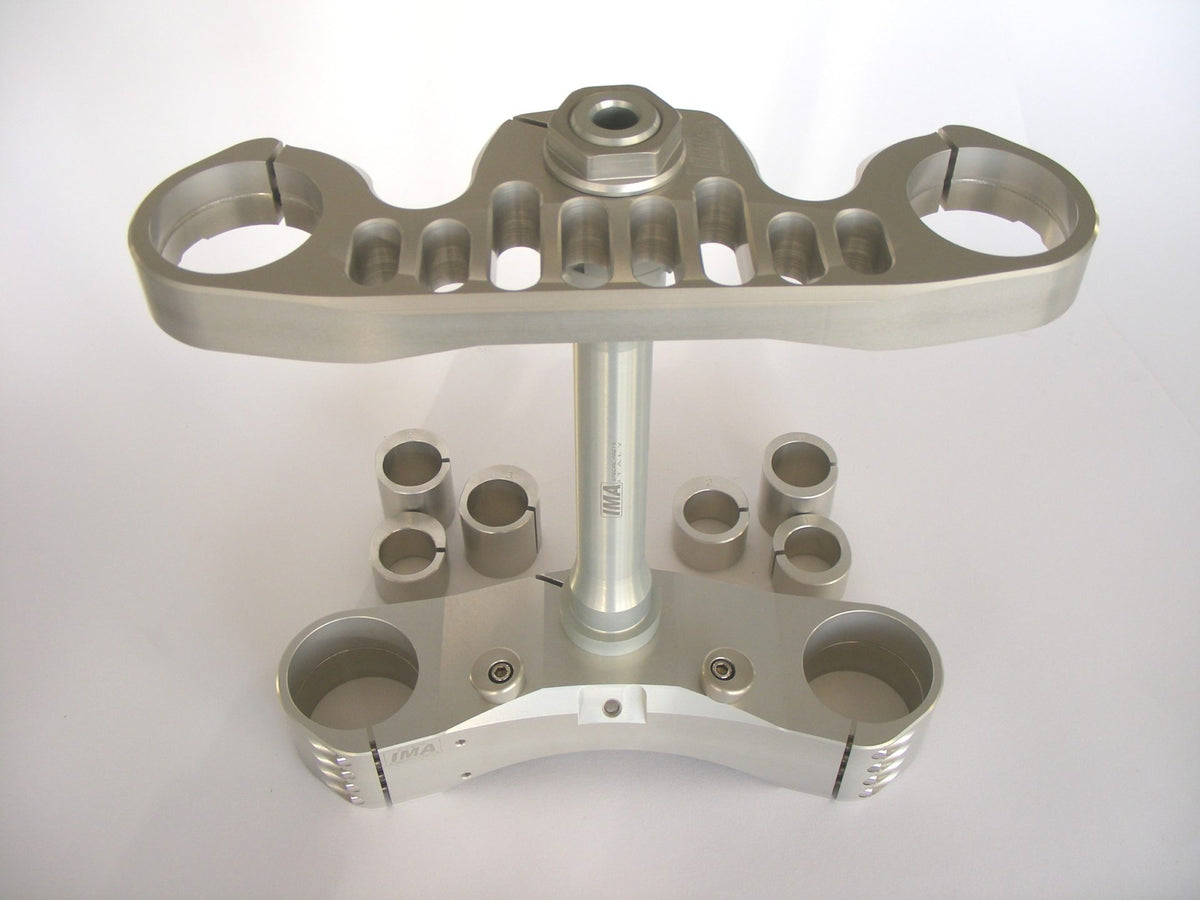

Model of triple clamps dedicated to Ducati Panigale 899, 959, 1199, 1299 (V2)

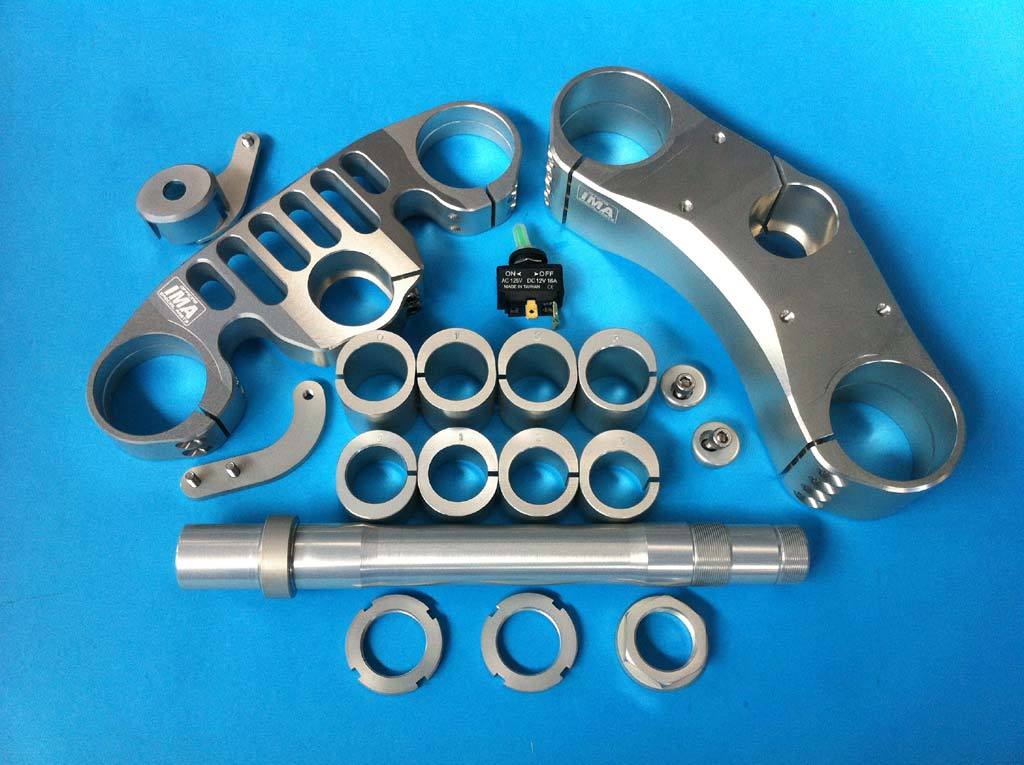

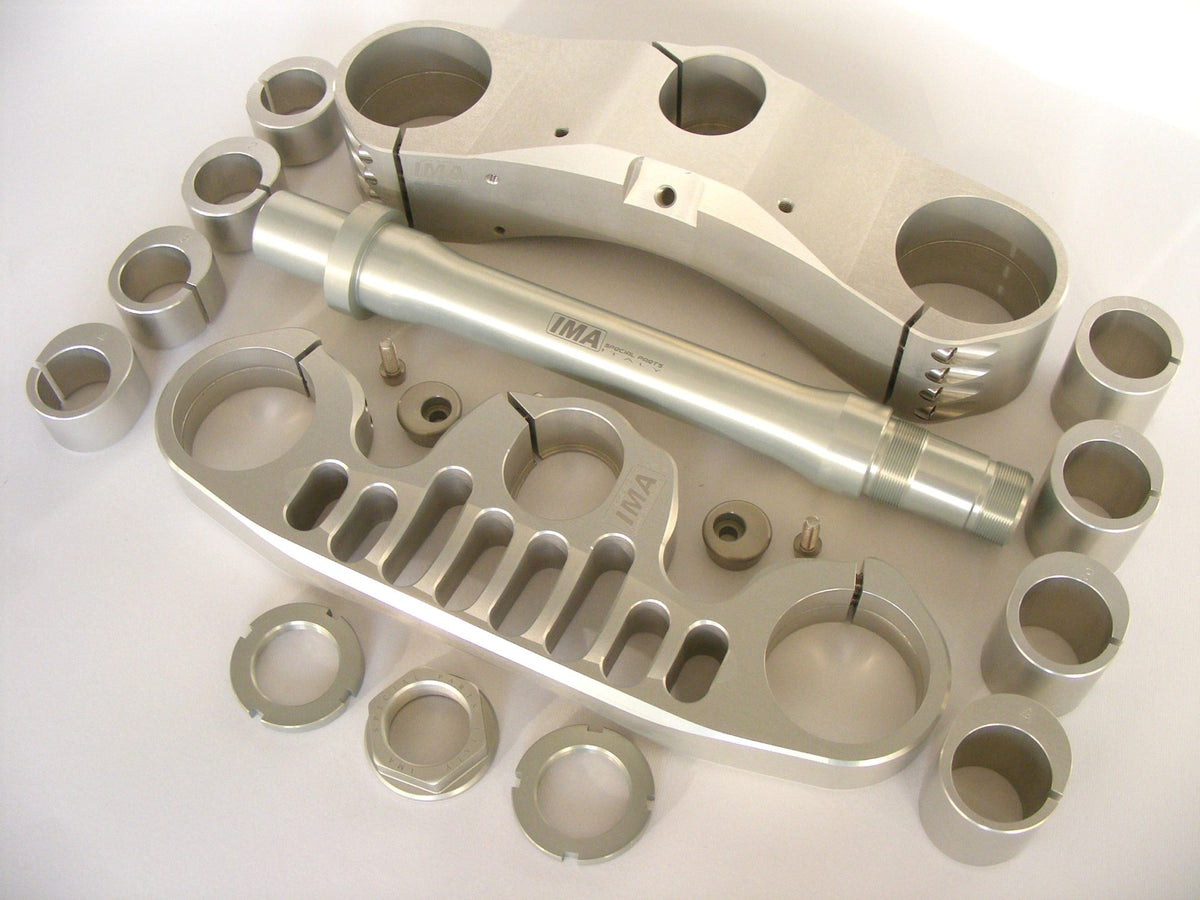

Billet Adjustable triple clamps, aimed at track enthusiast, developed to respond to the most recent studies on the chassis structural dynamics of new motorcycles. Thanks to their specific design/shape and to the higher material features, they work effectively in reducing the Chattering effect, conferring more precision, stability, and cornering speed. Also, provided with 4 sets of bushings, they allow adjusting the offset modifying the trail without moving the rake of the bike, in order to set the bike up to the personal attitude or to the track features. Adjustable steering limiters.

The Mod.6 is proposed in 2 versions:
Base setup (fixed offset)
Racing setup (adjustable)



  • 2012-2014 Ducati Panigale 1199
  • 2015-2018 Ducati Panigale 1299
  • 2013-2015 Ducati Panigale 899
  • 2018-2021 Ducati Panigale V4 / V4 R / Superleggera

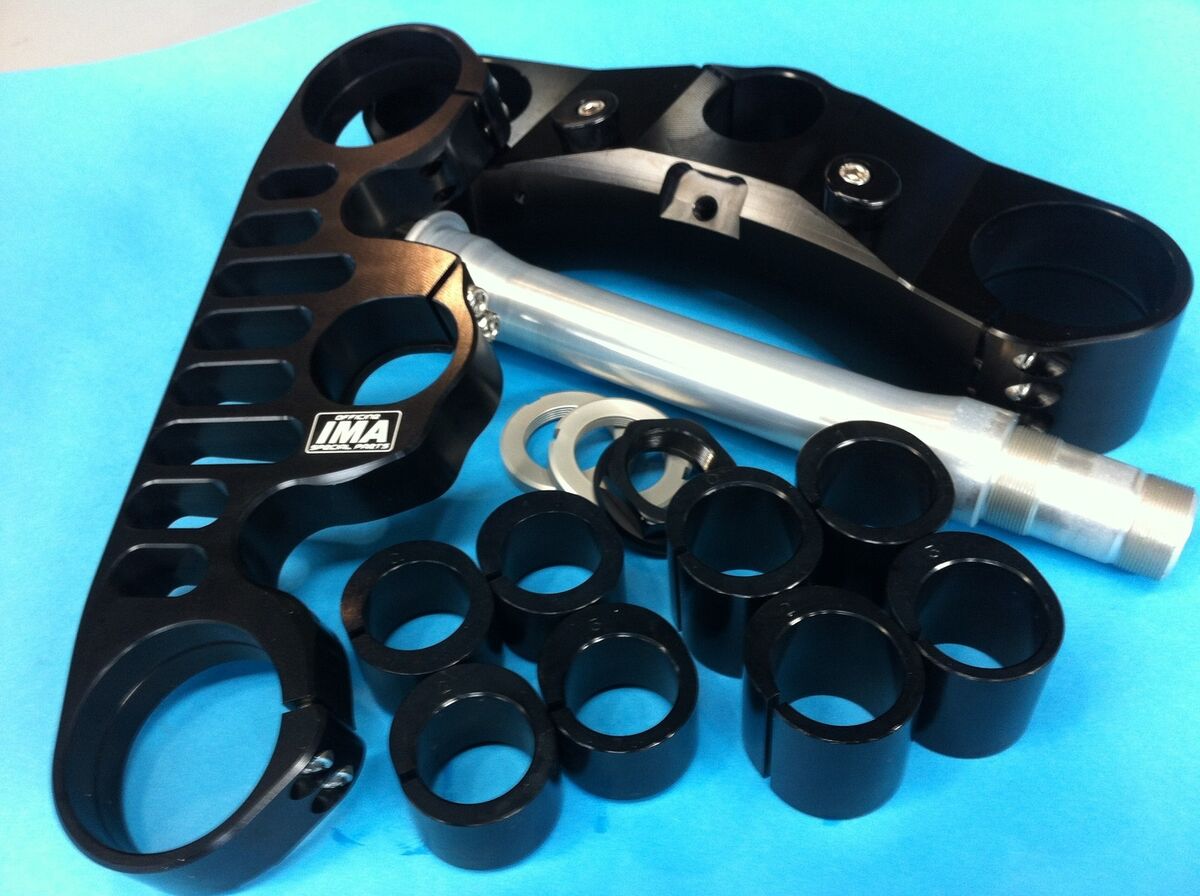

Through the experience grown in SBK with the front ends of MOD.4, IMA created a line dedicated to the Ducati Panigale.  Machined from billet, with adjustable offset. Plug & Play application, Available in 3 colors

This triple clamp setup represents the top of IMA's front-ends range. Set of anodized triple clamps for modern superbikes, CNC-machined from billet of 7075 ERGAL aluminum. Developed from recent studies about the structural dynamics of current motorcycles, these triple clamps provide an excellent opportunity to upgrade the bike’s chassis.

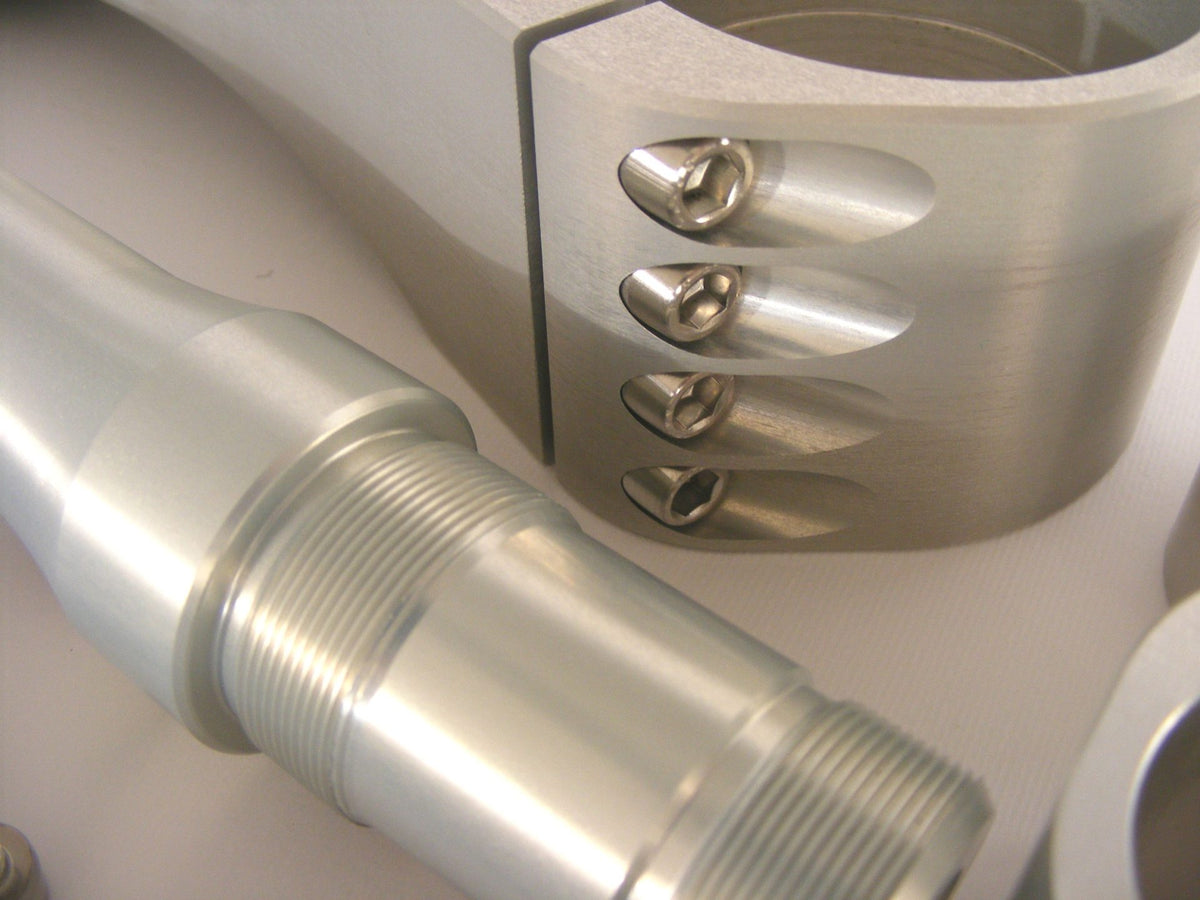

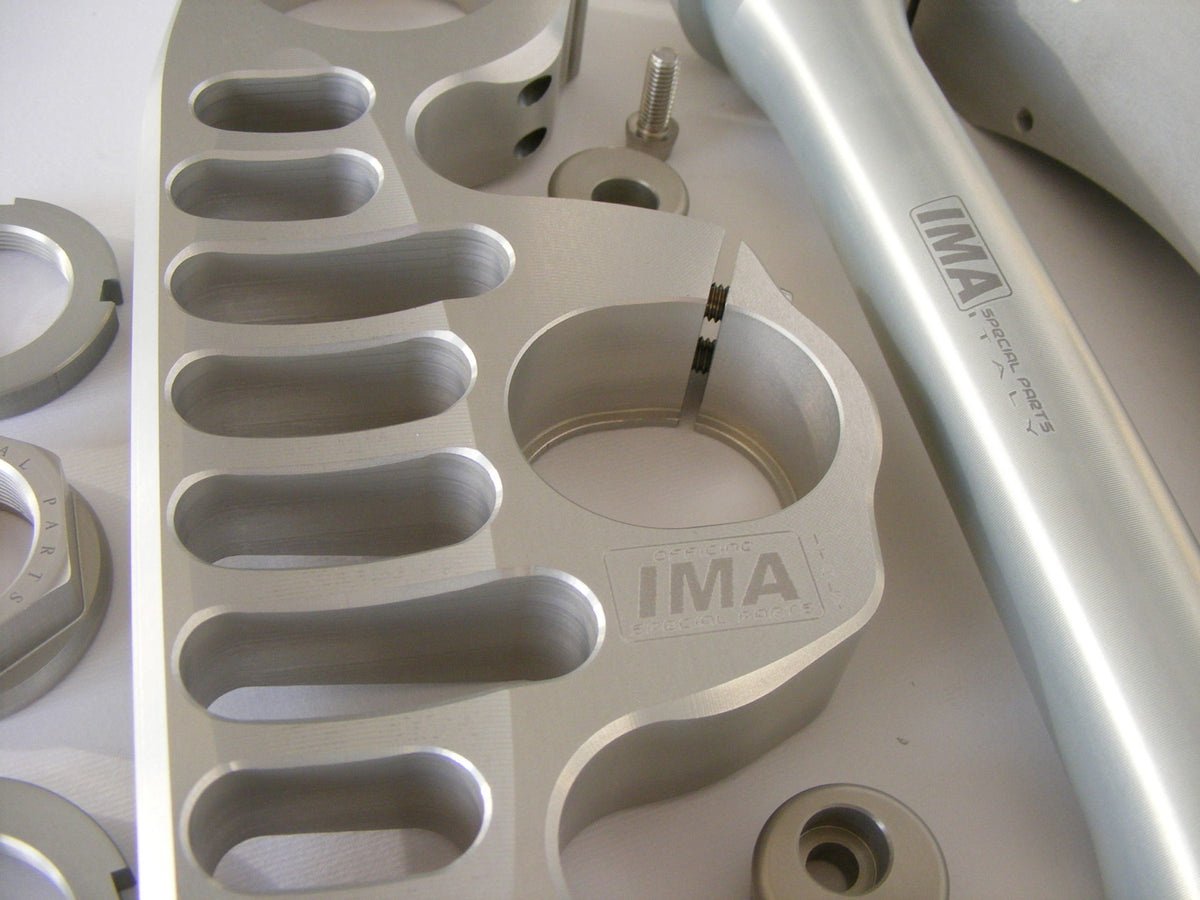

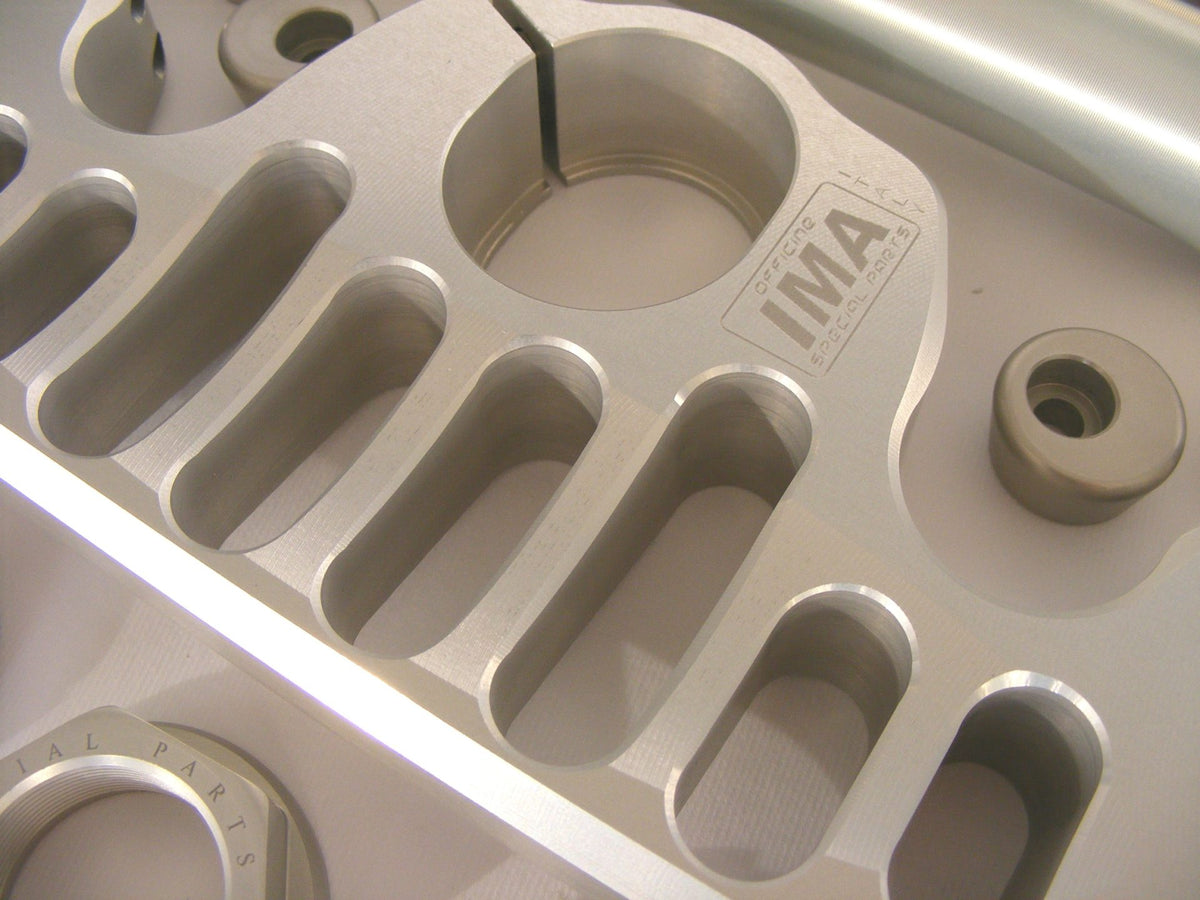

The lower clamp features inverse ribs technology providing greater rigidity while maintaining a low weight. The upper clamp features longitudinal slots creating greater flexibility while decreasing weight. The combination of a rigid lower triple clamp and a top triple clamp featuring engineered-flexibility effectively reduces chatter, following the technological trends of MotoGP and World SuperBike. Additionally, the triple clamp set features an adjustable eccentric at the steering stem, allowing for offset variations to suit a rider’s preferences.

The MOD.4 Evo kit is proposed in two different setups: Base Setup (with one bushing set for a single fixed offset); Racing Setup (with all bushings for a complete offset adjustment).

Note: Use the dropdown boxes above to select your colors and configuration.

Material:      ERGAL 7075

Recommended torque for fork's bolts:  7,5Nm with greasing

Sequence:  Upper 1,2,1,2,1 Lower 1,2,3,4,1,2,3,4,1,2,3

Forks diameters:  52-57 mm upper - 58 mm lower

Fork spacing:  226mm

Offset: adjustable 25mm to 31mm

Optional Accessories: Tapered roller bearing: 35mm, Dust seal: 35mm
